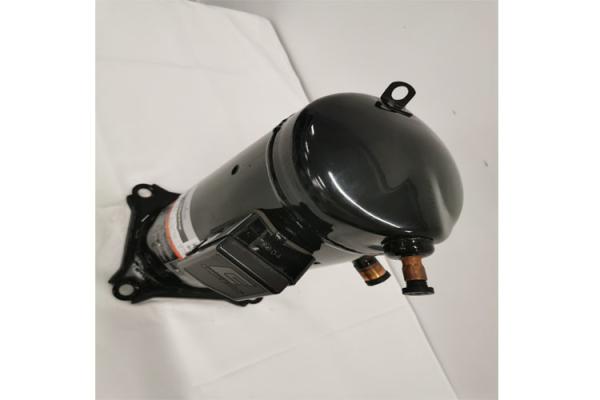

ZF11KQE-TFD-551 1.7Amps 3.6HP Cold Room Refrigeration Compressor

Product Categories
Shenzhen Ruifujie Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ZF11KQE-TFD-551 1.7Amps 3.6HP Cold Room Refrigeration Compressor

Brand Name : Copeland

Model Number : ZF11KQE-TFD-551

Certification : CE

Place of Origin : Thailand

MOQ : 1

Price : discussed

Payment Terms : T/T, D/A

Supply Ability : 1000PCS

Delivery Time : 1-5DAYS

Packaging Details : wood packaging

Application : Refrigeration Parts

Conditions : Brand New

Connection Code : 558 524 Brazing / 523 559 Rotalock

Type : Refrigeration Compressor

Contact Now

Product Description

Emerson Climate Technologies developed the ZF range to provide the best performance in low temperature. The range has a wide application envelope as it can operate from -40°C evaporating temperature to +7°C. They have been optimized in their scroll compliance mechanism, these scroll compressors feature particularly high tolerance to liquid slugging.

· Wide operating envelope with 10 C low condensing temperature to minimize energy consumption.

· One model to multiple refrigerants

· Lightweight and compactness, more than half the weight of the equivalent semi-hermetic compressor.

· Optional sound shell allowing 10 dB A sound attenuation


Product Range:-

Model No. Electrical Supply Volts / Phase Displacement m³/hr R404A Capacity Watts @ -25°C SST Connection Type Connection Size: inches Replacement Oil Charge: Ltrs Amps Winding Resistance Ohm Weight: kg
Suction Discharge Rated Load Amps Locked Rotor Amps
ZF09K4E-TFD-551 415/3 8 2950 Rotalock 1 1/4 1 1.1 6 40 4.83 30
ZF11K4E-TFD-551 415/3 9.9 3700 Rotalock 1 1/4 1 1.1 7 46 4.03 31
ZF13K4E-TFD-551 415/3 11.8 4300 Rotalock 1 1/4 1 1.4 8 51.5 3.64 41
ZF15K4E-TFD-551 415/3 14.5 5250 Rotalock 1 1/4 1 1.7 10 64 2.75 42
ZF18K4E-TFD-551 415/3 17.2 6400 Rotalock 1 1/4 1 1.7 12 74 2.27 44
ZF24K4E-TWD-551 415/3 20.9 7900 Rotalock 1 3/4 11/4 4 16.1 99 1.41 100
ZF33K4E-TWD-551 415/3 28.9 11000 Rotalock 1 3/4 11/4 4 22.3 127 1.02 100
ZF40K4E-TWD-551 415/3 35.6 13500 Rotalock 1 3/4 11/4 4.1 25.1 167 0.83 110
ZF48K4E-TWD-551 415/3 42.1 15600 Rotalock 2 1/4 13/4 1.66 3
