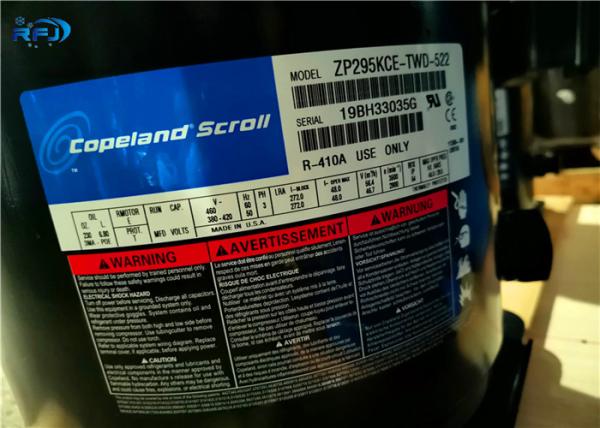

Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration
Specifications
Brand: Copeland
Model: ZP295KCE-TWD-522
Refrigerant: Freon
Refrigerant type: R410 A or other types
kW at +10ºC/+40ºC: 86,9
kW at 0ºC/+40ºC: 61,6
kW at -5ºC/+40ºC: 51,3
kW at -10ºC/+40ºC: 42,4
Weight in kg: 160 kg.
Sizes: 450x380x720 mm (LxWxH)
Technical data
Displacement [m³/h]: 46,7
Sound power [dBA]: 85
Sound pressure level [dB]: 74
Net Weight [kg]: 160,0
Gross Weight [kg]: 188
Oil charge [dm³]: 6,8
Maximum high pressure [bar]: 45
Maximum standstill pressure [bar]: 29,5
Minimal lowside temperature [°C]: -35
Maximum lowside temperature [°C]: 50
PED category: 2
Electrical data
Power supply [V/~/Hz]: 380-420V/3/50Hz
Locked rotor current [A]: 272,0
Max. operating current [A]: 48,5
Winding resistance [Ω]: 0,5
| Product name | Refrigeration Compressor |
| Application | HVAC |
| Compressor model | ZP295KCE-TWD-522 |
| MOQ | 1 Set |
| Refrigerant | R410A |
FAQ
1,What is your MOQ?
Our MOQ is usually 1 set.
2,Shipping methods and lead time
By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).
By Air: 7-10 working days to your airport.
By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.
Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).
3,What is your payment terms?
TT/WESTERN UNION
4, What are the main products?
Semi-hermetic compressor
Hermetic Compressor
Refrigeration Compressor Unit
5, Packaging & Shiping
Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements.
