4HP Copeland Compressor Refrigeration PH3 50hz 380-420v / 60hz ZB29KQE-TFD-558

4HP Copeland Compressor Refrigeration PH3 50hz 380-420v / 60hz ZB29KQE-TFD-558

Refrigerant: R404A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 29300/24400 EER (Btu/Wh): 6.9/6.7

• The world's first dual-flexible scroll compressor available 1987,It completely changed the refrigeration industry.

• Copeland compressor ZB29KQE-TFD-558 in many ways showed its unique advantages, high energy efficiency, low noise, high reliability, low cost system design and operating costs .

• Copeland compressor ZB29KQE-TFD-558 have longer life and higher reliability .

• Our product Copeland compressor ZB29KQE-TFD-558 have passed CE certification .

• Copeland compressor ZB29KQE-TFD-558 features

  1. Copeland compressor ZB29KQE-TFD-558 have Double flexible design

  It ensure seal between scroll plate. Allow scroll separate radial and axial directions, debris or liquid by vortex Plate without impairing compressor. This makes the machine longer life and higher reliability, better tolerance liquid .

  2. High energy efficiency

  Running scrolls instead wear, it will be better with the increase of the running time, which makes high volumetric efficiency.

  3. Copeland compressor ZB29KQE-TFD-558 have lower noise and vibration levels .

  It has a smooth sound spectrum and the soft sound quality.

  4. Start unloading technology

  Compression member separated from each other after the shutdown of the compressor overall pressure balance, without additional activation means.

  Technical Data

  Specificaiton	Copeland compressor ZB29KQE-TFD-558
  Capacity(Btu/hr)	24400
  Power(W)	3640
  Current(A)	7.70
  EER(Btu/wh)	6.70
  Mass Flow(lbs/hr)	514
  Horse Power	4
  Weight(lbs)	72
  Refrigerant	R404A








copeland ac compressor

copeland a c compressor

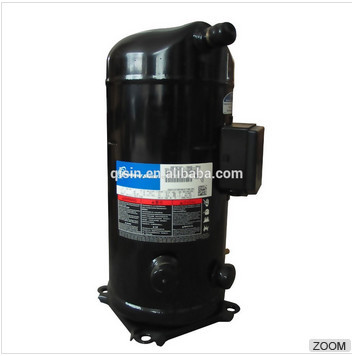

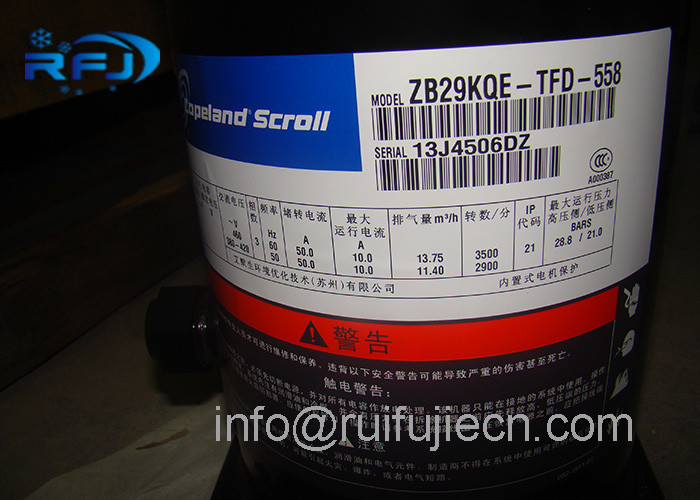

4HP Copeland Compressor Refrigeration PH3 50hz 380-420v / 60hz ZB29KQE-TFD-558 Images
