2 Cylinders Semi Hermetic Compressor 3HP 4FES-3Y 380V1 Year Warranty

Model Number : 4FES-3Y

Certification : ROHS, CE

Place of Origin : China

MOQ : 1 piece

Price : US$(500-800)/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000Pieces/Year

Delivery Time : 5-7 Days

Packaging Details : Standard Wooden Package

Type : Refrigeration Compressor

Application : Refrigeration Parts

Power : 3 HP

Cylinder : 1

Weight : 85 KG

Refrigerant : R404 R407C R134A

Color : Green

Warranty : 1 Year

Power Source : AC POWER

Contact Now

2 Cylinders China semi hermetic 3HP 4FES-3Y 380V for sale

Company Information

1. We are first level agent for offering you competitive price.

2. We have all Models available.

3. We prodive fast delivery within 1-7 days after payment.

4. We provide perfect after sales service.

5. We have regular clients of product from both home and abroad.

Product Description

Features

1) New valve plate design

New geometric concept for pressure valves – for low rear expansion.
High cooling capacity with minimal energy requirements.
The ECOLINE cylinder head system: Flexible operation in tandem.

2) Motor

Efficient under full- and part-load thanks to its broadband characteristics.
The universal refrigeration compressor: Motor version 2 for medium and low temperature applications.
Motor versions 1 and 3 for special applications.

3) Capacity control

The CRII system – intermittent blocked suction For example, 4-cylinder compressor with CRII on both heads: Range of control from 100% to ~10%
ECOLINE VARISPEED – built-in frequency inverter

4) Downward compatible

Essential internal components completely redesigned.
Outer contour as standard: Every ECOLINE is downward compatible

5) Drive gear

New piston and connecting rod design

	SI	IP
Displacement(1450 RPM 50 HZ)	18.05 m³/h	637.4 CFH
Displacement(1750 RPM 60 HZ)	21.78 m³/h	769.2 CFH
No.of cylinder * bore * stroke	441mm39.3mm	41.61inch1.55inch
Weight	82 kg	181 lb
Max,pressure(LP/HP)	19/32 bar	275/464 psi
Connection suction line	22mm-7/8”	22mm-7/8”
Connection discharge line	16mm-5/8”	16mm-5/8”
Motor version	2	2
Starting current(Rotor locked)	44.2 A	47.5A
Motor voltage(more on request)	380-420V Y-3-50 HZ	440-480V Y-3-60 HZ UL
Max operating current	9.5 A	9.5 A

Technical data

Technical Data of 22hp cold room compressor 6JE-25 (6J-22.2)

	SI	IP
Displacement (1450 RPM 50Hz)	95,3 m³/h	3365.5 CFH
Displacement (1750 RPM 60Hz)	115,02 m³/h	4061.9 CFH
No. of cylinder x bore x stroke	6 x 65 mm x 55 mm	6 x 2.56 inch x 2.17 inch
Weight	213 kg	470 lb
Max. pressure (LP/HP)	19 / 32 bar	275 / 464 psi
Connection suction line	54 mm - 2 1/8''	54 mm - 2 1/8''
Connection discharge line	35 mm - 1 3/8''	35 mm - 1 3/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) / R134a tc>70°C: BSE55 (Option)	BSE32(Standard) / R134a tc>155°F: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)	B5.2(Option)

Extent of delivery(Standard) of 22hp cold room compressor 6JE-25 (6J-22.2)

	SI	IP
Motor protection	SE-B2	SE-B2
Enclosure class	IP54 (Standard), IP66 (Option)	IP54 (Standard), IP66 (Option)
Vibration dampers	Standard	Standard
Oil charge	4,75 dm³	167.2 fl oz

Motor Data of 22hp cold room compressor 6JE-25 (6J-22.2)

	SI	IP
Motor version	2	2
Motor voltage (more on request)	380-420V PW-3-50Hz	440-480V Y-3-60Hz UL
Max operating current	46.4 A	46.4 A
Winding ratio	50/50	50/50
Starting current (Rotor locked)	141.0 A Y / 233.0 A YY	245.0 A

Sound Measurement of 22hp cold room compressor 6JE-25 (6J-22.2)

	SI	IP
Sound power level (-10°C / 45°C)	79,3 dB(A) @50Hz	81,8 dB(A) @60Hz
Sound power level (-35°C / 40°C)	85,0 dB(A) @50Hz	87,5 dB(A) @60Hz
Sound pressure level @ 1m (-10°C / 45°C)	71,3 dB(A) @50Hz	73,8 dB(A) @60Hz
Sound pressure level @ 1m (-35°C / 40°C)	77 dB(A) @50Hz	79,5 dB(A) @60Hz
Sound power level (-10°C / 45°C) R134a	77,3 dB(A) @50Hz	79,8 dB(A) @60Hz
Sound pressure level @ 1m (-10°C / 45°C) R134a	69,3 dB(A) @50Hz	71,8 dB(A) @60Hz

2 Cylinders Semi Hermetic Compressor 3HP 4FES-3Y 380V1 Year Warranty

Product Tags:

semi hermetic reciprocating compressor

air cooled condensing unit

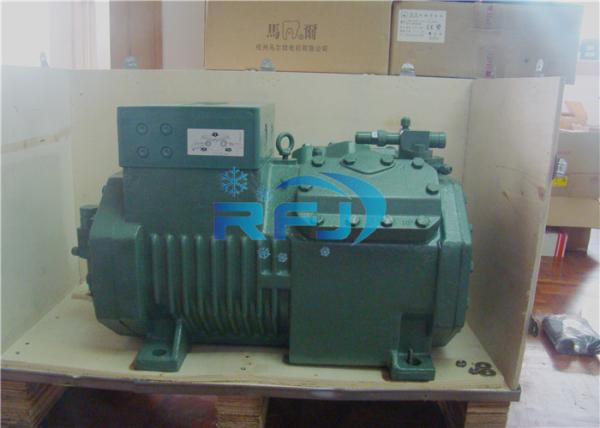

2 Cylinders Semi Hermetic Compressor 3HP 4FES-3Y 380V1 Year Warranty Images
