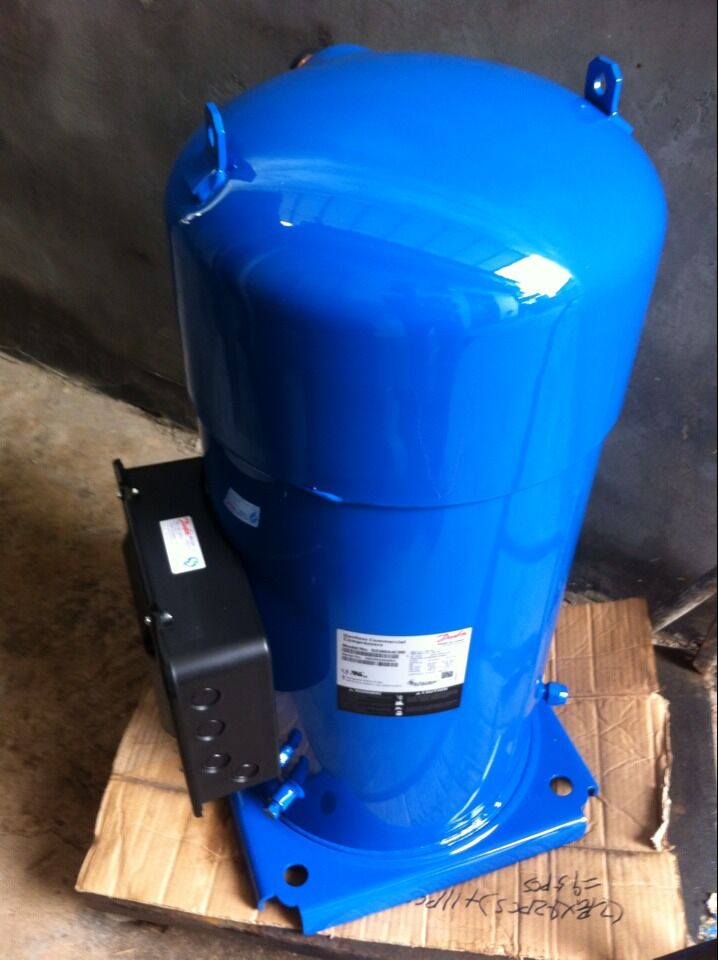

13 HP Air Conditionary Scroll compressor SH161 R404A/ R134A/R22
Specification:
Maneurop Compressor
1,SH380,SH300,SH240,SH180,SH161
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ tandem series
Type: Hermetic scroll compressors
Producer: Performer
Series: SH
Model: SH161
Technical data
| | | |
| Displacement [m³/h]: | 26,4 | |
| Swept volume [cm³/rev]: | 151,7 | |
| RPM [min-1]: | 2900 | |
| Weight [kg]: | 69 | |
| Oil charge [dm³]: | 3,3 | |
| Oil type: | 160SZ | |
| Maximum system test pressure low side / high side: | 33/45 | |
| Maximum number of starts without softstart [1/h]: | 12 | |
| Refrigerant charge limit [dm³]: | 7,9 | |
| Sound power [dB]: | 73,5 | |
| Refrigerant: | R410A | |
Connections
| | milimeters | inches | |
| Suction connection with supplied sleeve: | 35 | 1 3/8'' | |
| Discharge connection with supplied sleeve: | 22 | 7/8'' |
Standard equipment
- rubber vibration absorbers
- oil sight glass
- oil equalization
Optional equipment
- belt type heater
- soft-start kit
- discharge thermostatic protection
Application
- medium evaporating temperature
(R410A from 20 ºC to -30 ºC)
Performer compressors is a type of scroll compressors used for both 50Hz and 60Hz,
can be used for R22a,R407c
1. SM/SY series for R22
2. SZ series for R407c
3. Horse power range from 7 HP to 25 hp
SM/SZ series.
*7 to 25 HP.
*R22/R407C refrigerant
COMPRESSOR MODELS FOR R22:
SM084
SM090
SM100
SM110
SM115
SM120
SM125
SM148
SM160
SM161
SM175
SM185
SY240
SY300
COMPRESSOR MODELS FOR R407C:
SZ084
SZ090
SZ100
SZ110
SZ115
SZ120
SZ125
SZ148
SZ160
SZ161
SZ175
SZ185
SZ240
SZ300
SM series:
SM084-4VM(7HP)
SM090-4VM(7.5HP)
SM100-4VM(8HP)
SM110-4VM(9HP)
SM115-4VM(9.5HP)
SM120-4VM(10HP)
SM125-4VM(10HP)
SM148-4VM(12HP)
SM160-4VM(13HP)
SM185-4VM(15HP)
SZ seires:
SZ084-4VM(7HP)
SZ090-4VM(8HP)
SZ100-4VM(8HP)
SZ110-4VM(9HP)
SZ120-4VM(10HP)
SZ148-4VM(12HP)
SZ161-4VM(13HP)
SZ/Y185-4VM(15HP)
We can supply more compressor models as below:
| Model | Refrigerant | Power | Net Weight |
| SZ100-3/9VM | R134A/R407C | 8HP | 72KG |
| SZ110-3/9Vm | 9HP | 72KG |
| SZ120-3/9VM | 10HP | 80KG |
| SZ125-3RM | 10HP | 80KG |
| SZ148-3/9VAM | 12HP | 86KG |
| SZ161-T3/9VC | 13HP | 86KG |
| SZ/Y185-3/9CAM | 15HP | 103KG |
| SZ240A3/9CBM | 20HP | 160KG |
| SZ300A3/9CBM | 25HP | 160KG |
| SM084-4VM | R22 | 7HP | 72KG |
| SM090-4VM | 7.5HP | 72KG |
| SM100-4VM | 8HP | 72KG |
| SM110-4VM | 9HP | 80KG |
| SM112A4ACB | 9HP | 80KG |
| SM115-4CAM | 9.5HP | 80KG |
| SM120-4VM | 10HP | 80KG |
| SM148-4VAM | 12HP | 86KG |
| SM125-4CAM | 10HP | 80KG |
| SM124A4ACB | 10HP | 80KG |
| SM147A4ACB | 12HP | 86KG |
| SM161-4VAM | 13HP | 86KG |
| SM160-4CBM | 13HP | 93KG |
| SM175-4CAM | 14HP | 103KG |
| SM175-4RM | 14HP | 103KG |
| SM185-4CAM | 15HP | 103KG |
| SM185-4RM | 15HP | 103KG |
| SY240A4CBM | 20HP | 160KG |
| SY300ACBM | 25HP | 160KG |
| SY300A4CAM | 25HP | 160KG |
| SY380A4CBM | 31HP | 225KG |
Product Tags:
|
|

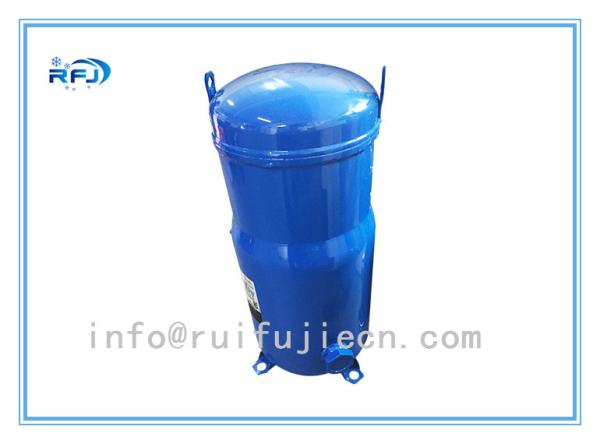

13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ Images
|
